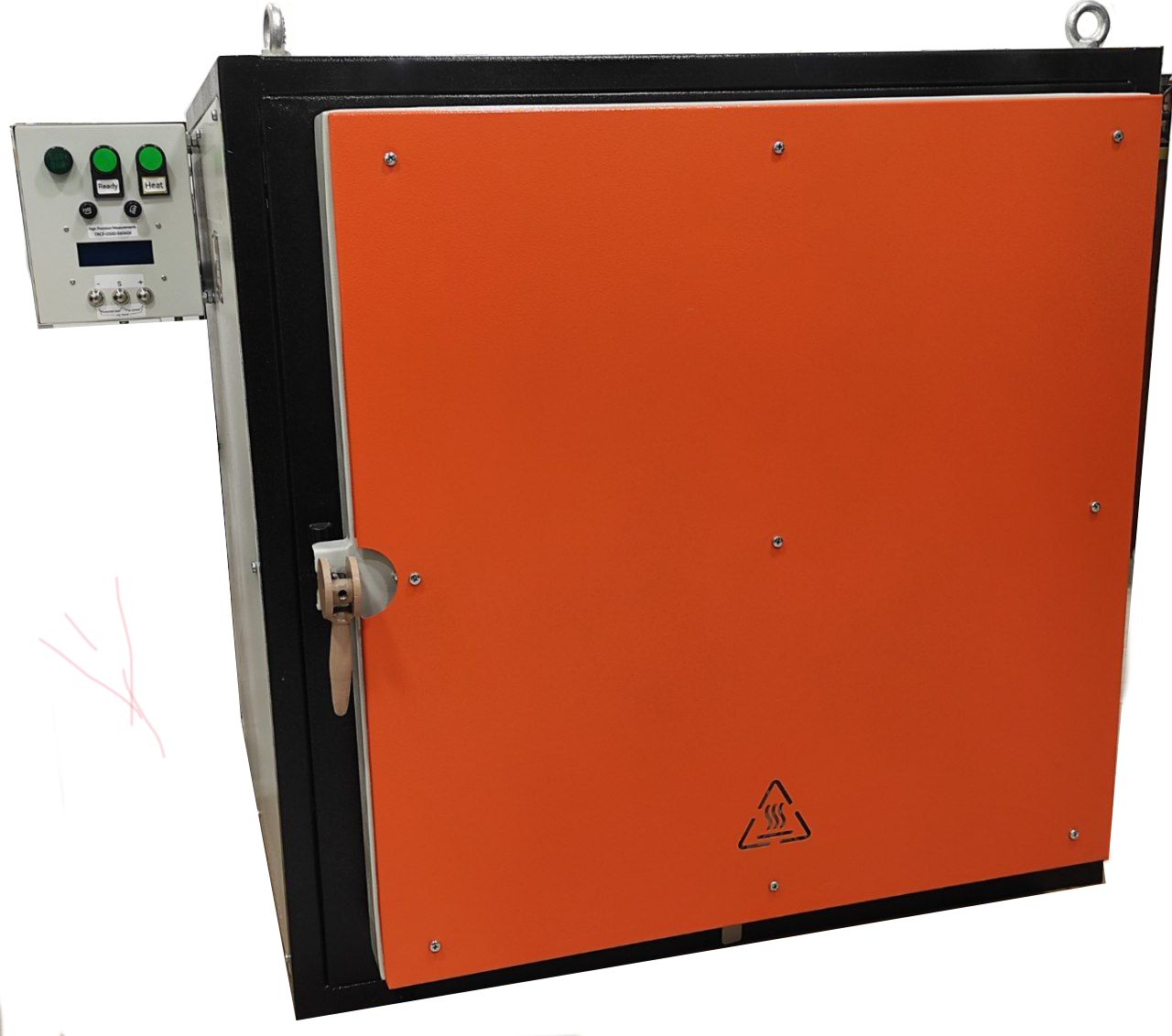

Temperature regulated curing furnace TRCF
TRCF
The furnace has a temperature controller to regulate the temperature in the furnace chamber in accordance with the heat treatment programs for various adhesives and cements used in strain measurement of parts and assemblies.
The use of preset programs ensures that the entire heat treatment cycle is carried out in automatic mode and eliminates possible errors associated with incorrectly setting the temperature and/or the time of temperature set-up or holding on the “shelf” by the user, and also frees the user from the need to reconfigure the controller to proceed to the next heat treatment step.
Download datasheet
Technical parameters
|
Parameter name |
Meaning |
|
1. Working temperature range:, °С |
0 °С - +50°С |
|
2. Temperature control range, °С |
0°С - +500°С |
|
3. Temperature sensor type |
Thermocouple chromel-alumel (type K) |
|
4. Number of heat treatment programs |
Up to 20 |
|
5. Temperature measurement error |
Not more than ±(2ºC+1%). |
|
6. Casting after the end of the temperature set |
Not more than 3ºC. |
|
7. Temperature fluctuations in the furnace chamber during the temperature maintenance phase |
Not more than ±2ºC. |
|
8. Power supply |
3 x 380V±10%, 50Hz. |
|
9. Furnace chamber dimensions, mm |
750 х 750 х 750 |
|
10. External overall dimensions, ±5%, |
1250 x 1450 x 1250 |
|
11. The presence of fan |
+ |
|
12. Guarantee period |
3 years |
|
13. Support |
Technical support regarding usage and setting of treatment programs during first 3 months. |
