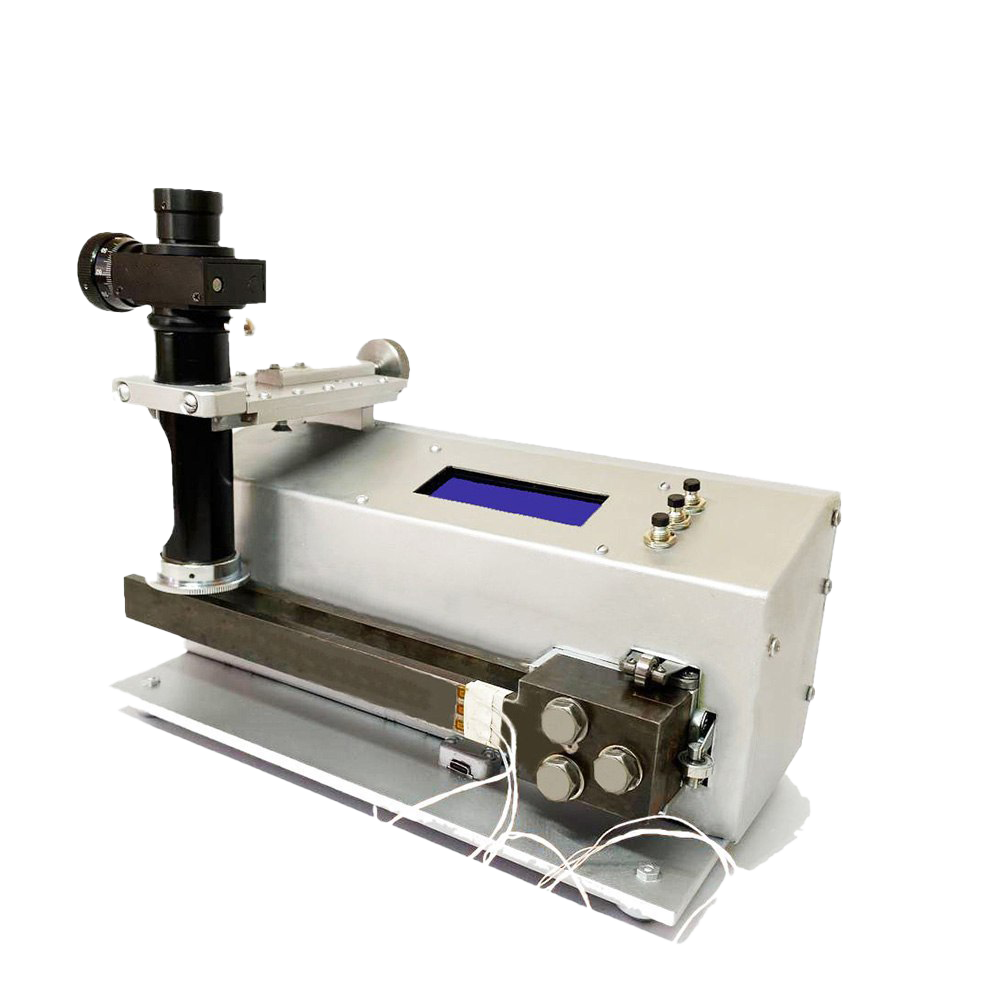

Tuning fork calibration device TFGD-4001
TFGD-4001
TFGD-4001 designed for calibration of measuring channels of strain gages, used for testing of jet engines and gas turbines, directly on the test object, also, during all kinds of stand dynamic tests, as well as for checking the correctness of operation and correctness of calibration of strain gages previously performed by other methods (e.g. calculation)Technical parameters
| Parameters name | Value |
| Maximum stress of tuning fork fixture | 20kg/mm2 |
| Accuraci of measured deformation | ±10 mil. ppm |
| Supply voltage | 230V AC |
| Protection against electirc shock | Class 1 |
| Power consumption, max. | 40 W |
| Operation temperature | +18...+35°C |
