HPM technology for 400°C strain measurement
Special technology for measurements at working temperature range up to 400°C deg means that our engineers found best solution how to simplify strain gages application process for short time stress/tensile tests for instrumentation community.
Earlier such “mid temperatures” test at working temperature 250-400°C deg was required high temperature free filament wire strain gages, that complicates the process of measurements a lot as application process is quite difficult, takes a lot of time and require special equipment and skills.
So, we find the solution how engineers who are accustomed to using conventional foil strain gages for low temperatures, can work with simplified technology for the application of wire strain gages with UV light curing.
Our technology provides for customer
-

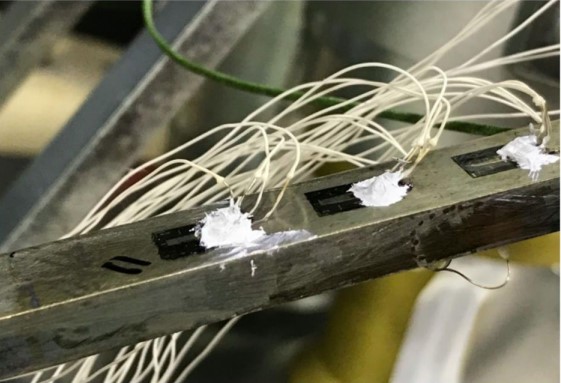

STN series wire strain gages or Special BAB250 series of strain gages (Karma alloy on fiberglass-reinforced polyimide baking) with special technology welded leads.
-
Special custom adhesive that cures with ultraviolet light.
-
Prewelded wires with any required length.
-
Special protective sealant to protect the most vulnerable area of the strain gage (where the wires are welded).
-
Instruction of strain gages application.
-
Lead time of providing such technology could be up to 8 weeks.
